APPLE RGB CLAZ Series is a high performance and reliable sorting machine. It is designed for new generation and a good feel for Food Processing Industries. CLAZ is the only solution for all your needs.
It is equipped with image processing technology which reduces carry over ratio. CLAZ increases your profitability by
achieving high yield and market value. Finally you are safe hands Of Indian Color Sorter who has experience of more than 20 years in sorting industries

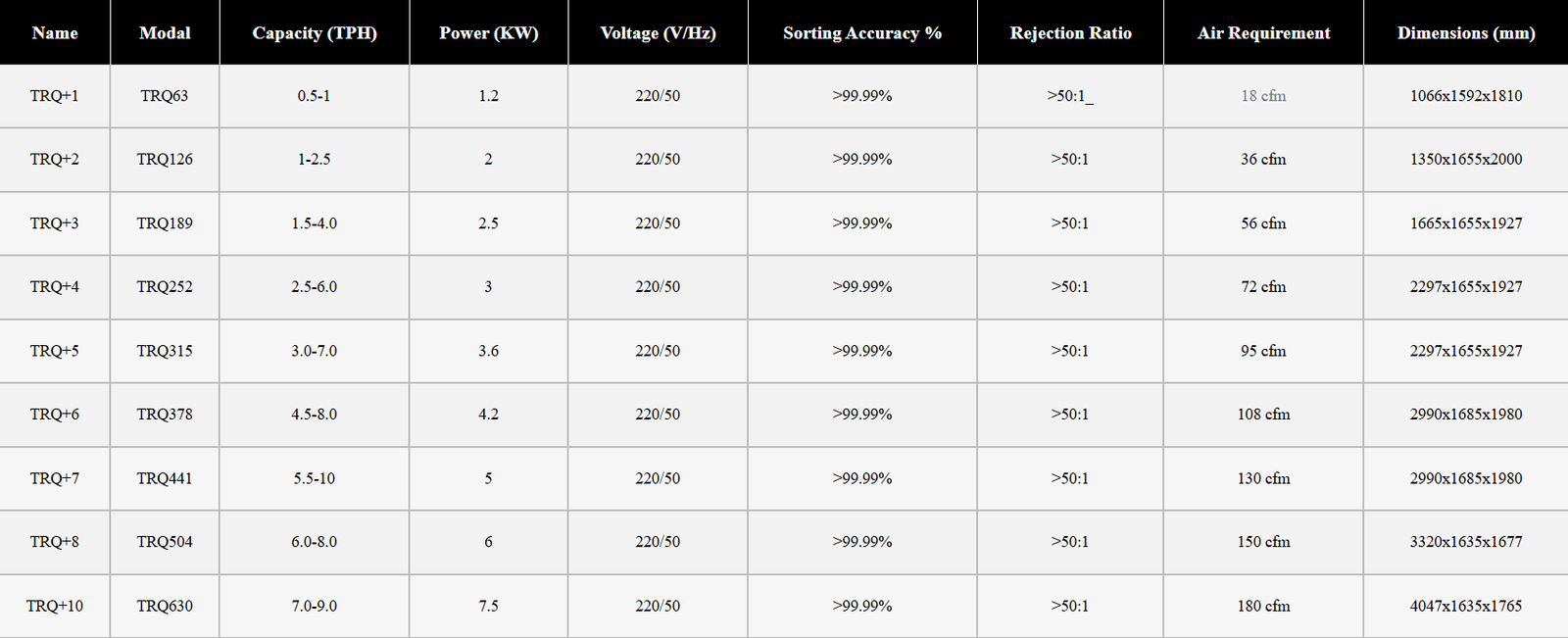

| Name | Modal | Capacity (TPH) | Power (KW) | Voltage (V/Hz) | Sorting Accuracy % | Rejection Ratio | Air Requirement | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|
|
TRQ+1 |
TRQ63 |
0.5-1 |
1.2 |
220/50 |
>99.99% |
>50:1_ |
18 cfm |
1066x1592x1810 |
|
TRQ+2 |
TRQ126 |
1-2.5 |
2 |
220/50 |
>99.99% |
>50:1 |
36 cfm |
1350x1655x2000 |
|
TRQ+3 |
TRQ189 |
1.5-4.0 |
2.5 |
220/50 |
>99.99% |
>50:1 |
56 cfm |
1665x1655x1927 |
|
TRQ+4 |
TRQ252 |
2.5-6.0 |
3 |
220/50 |
>99.99% |
>50:1 |
72 cfm |
2297x1655x1927 |
|
TRQ+5 |
TRQ315 |
3.0-7.0 |
3.6 |
220/50 |
>99.99% |
>50:1 |
95 cfm |
2297x1655x1927 |
|
TRQ+6 |
TRQ378 |
4.5-8.0 |
4.2 |
220/50 |
>99.99% |
>50:1 |
108 cfm |
2990x1685x1980 |
|
TRQ+7 |
TRQ441 |
5.5-10 |
5 |
220/50 |
>99.99% |
>50:1 |
130 cfm |
2990x1685x1980 |
|
TRQ+8 |
TRQ504 |
6.0-8.0 |
6 |
220/50 |
>99.99% |
>50:1 |
150 cfm |
3320x1635x1677 |
|
TRQ+10 |
TRQ630 |
7.0-9.0 |
7.5 |
220/50 |
>99.99% |
>50:1 |
180 cfm |
4047x1635x1765 |

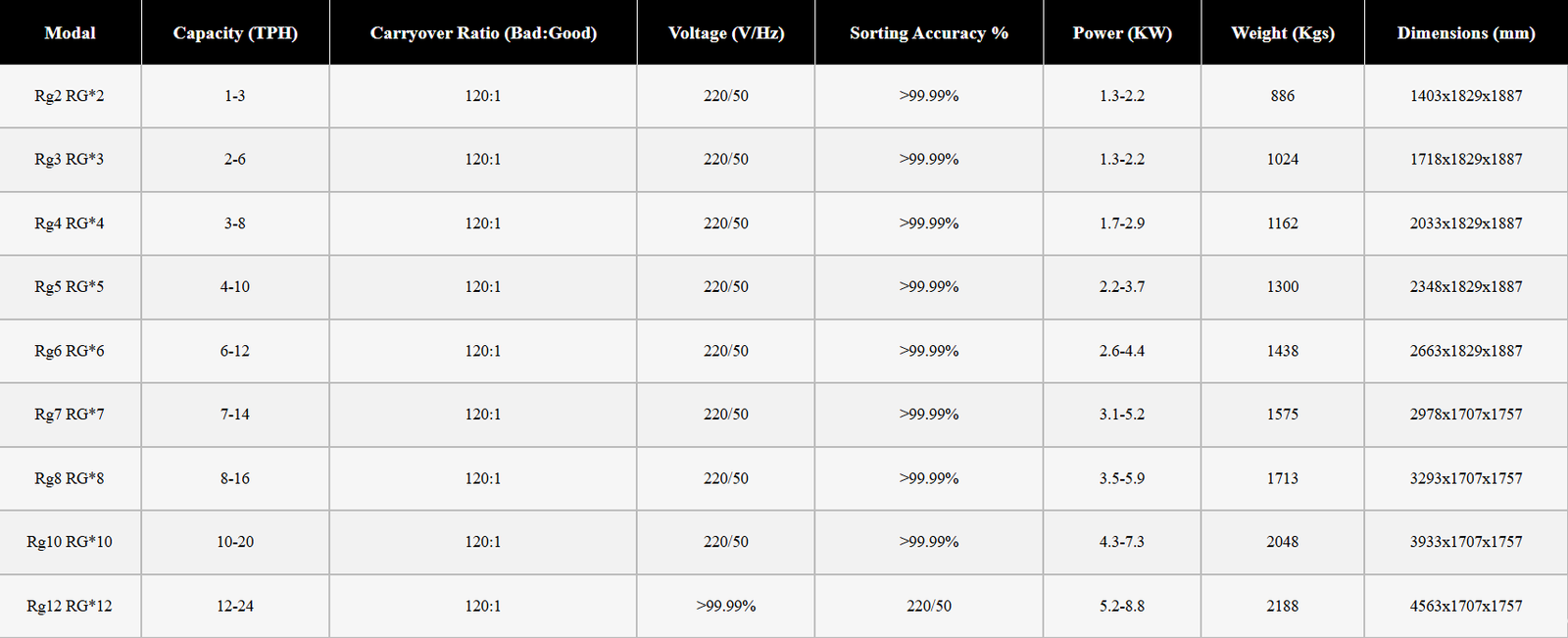

| Modal | Capacity (TPH) | Carryover Ratio (Bad:Good) | Voltage (V/Hz) | Sorting Accuracy % | Power (KW) | Weight (Kgs) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|
|
Rg2 RG*2 |
1-3 |
120:1 |
220/50 |
>99.99% |
1.3-2.2 |
886 |
1403x1829x1887 |
|
Rg3 RG*3 |
2-6 |
120:1 |
220/50 |
>99.99% |
1.3-2.2 |
1024 |
1718x1829x1887 |
|
Rg4 RG*4 |
3-8 |
120:1 |
220/50 |
>99.99% |
1.7-2.9 |
1162 |
2033x1829x1887 |
|
Rg5 RG*5 |
4-10 |
120:1 |
220/50 |
>99.99% |
2.2-3.7 |
1300 |
2348x1829x1887 |
|
Rg6 RG*6 |
6-12 |
120:1 |
220/50 |
>99.99% |
2.6-4.4 |
1438 |
2663x1829x1887 |
|
Rg7 RG*7 |
7-14 |
120:1 |
220/50 |
>99.99% |
3.1-5.2 |
1575 |
2978x1707x1757 |
|
Rg8 RG*8 |
8-16 |
120:1 |
220/50 |
>99.99% |
3.5-5.9 |
1713 |
3293x1707x1757 |
|
Rg10 RG*10 |
10-20 |
120:1 |
220/50 |
>99.99% |
4.3-7.3 |
2048 |
3933x1707x1757 |
|
Rg12 RG*12 |
12-24 |
120:1 |
>99.99% |
220/50 |
5.2-8.8 |
2188 |
4563x1707x1757 |
